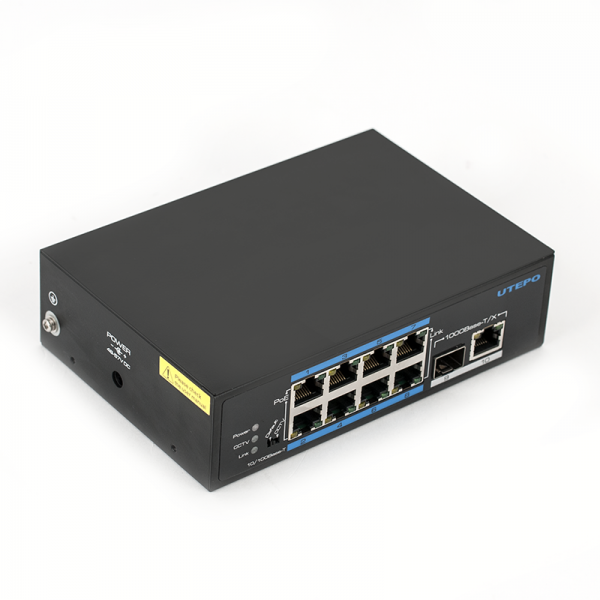

UTP7108E-POE * Switch ethernet industrial PoE+, 8 porturi 10/100Mbps Base-T downlink, 1 port 10/100/1000Mbps Base-T uplink, 1 port 1000Mbps Base-X SFP uplink
![UTP7108E-POE * Switch ethernet industrial PoE+, 8 porturi 10/100Mbps Base-T downlink, 1 port 10/100/1000Mbps Base-T uplink, 1 port 1000Mbps Base-X SFP uplink [1]](https://gomagcdn.ro/domains2/asfy.ro/files/product/original/utp7108e-poe-switch-ethernet-industrial-poe-8-porturi-10-100mbps-base-t-downlink-1-port-10-100-1000mbps-base-t-uplink-1-port-1000mbps-base-x-sfp-uplin-347506.png "UTP7108E-POE * Switch ethernet industrial PoE+, 8 porturi 10/100Mbps Base-T downlink, 1 port 10/100/1000Mbps Base-T uplink, 1 port 1000Mbps Base-X SFP uplink [1]")
![UTP7108E-POE * Switch ethernet industrial PoE+, 8 porturi 10/100Mbps Base-T downlink, 1 port 10/100/1000Mbps Base-T uplink, 1 port 1000Mbps Base-X SFP uplink [2]](https://gomagcdn.ro/domains2/asfy.ro/files/product/original/utp7108e-poe-switch-ethernet-industrial-poe-8-porturi-10-100mbps-base-t-downlink-1-port-10-100-1000mbps-base-t-uplink-1-port-1000mbps-base-x-sfp-uplin-350515.png "UTP7108E-POE * Switch ethernet industrial PoE+, 8 porturi 10/100Mbps Base-T downlink, 1 port 10/100/1000Mbps Base-T uplink, 1 port 1000Mbps Base-X SFP uplink [2]")
![UTP7108E-POE * Switch ethernet industrial PoE+, 8 porturi 10/100Mbps Base-T downlink, 1 port 10/100/1000Mbps Base-T uplink, 1 port 1000Mbps Base-X SFP uplink [0]](https://gomagcdn.ro/domains2/asfy.ro/files/product/medium/utp7108e-poe-switch-ethernet-industrial-poe-8-porturi-10-100mbps-base-t-downlink-1-port-10-100-1000mbps-base-t-uplink-1-port-1000mbps-base-x-sfp-uplin-347506.png "UTP7108E-POE * Switch ethernet industrial PoE+, 8 porturi 10/100Mbps Base-T downlink, 1 port 10/100/1000Mbps Base-T uplink, 1 port 1000Mbps Base-X SFP uplink [0]")
![UTP7108E-POE * Switch ethernet industrial PoE+, 8 porturi 10/100Mbps Base-T downlink, 1 port 10/100/1000Mbps Base-T uplink, 1 port 1000Mbps Base-X SFP uplink [1]](https://gomagcdn.ro/domains2/asfy.ro/files/product/medium/utp7108e-poe-switch-ethernet-industrial-poe-8-porturi-10-100mbps-base-t-downlink-1-port-10-100-1000mbps-base-t-uplink-1-port-1000mbps-base-x-sfp-uplin-350515.png "UTP7108E-POE * Switch ethernet industrial PoE+, 8 porturi 10/100Mbps Base-T downlink, 1 port 10/100/1000Mbps Base-T uplink, 1 port 1000Mbps Base-X SFP uplink [1]")
Durata de livrare: 1
- Descriere
- Caracteristici
- Review-uri (0)
Switch-ul dispune de 8 porturi PoE+ downlink 10/100 Mpbs Base-T, pentru alimentarea dispozitivelor compatibile cum ar fi camere IP, puncte de acces (WiFi), separatoare PoE, etc.
De asemenea, switch-ul dispune de 1 port ethernet uplink 10/100/1000Mpbs Base-T si 1 port uplink 1000Mbps Base-X SFP, pentru cascadarea cu alte switch-uri sau transmisia la distanta mai mare de 100m a datelor.
Fiind echipat cu un procesor din gama industriala, acest switch asigura o capacitate de switching de pana la 5.6Gbps cu un cache date de 1Mbit si permite functionarea la temperaturi de pana la -30°C ~ +65°C. Functia “PoE Watchdog” permite resetarea automata a camerei oferind astfel o stabilitate mai ridicata.

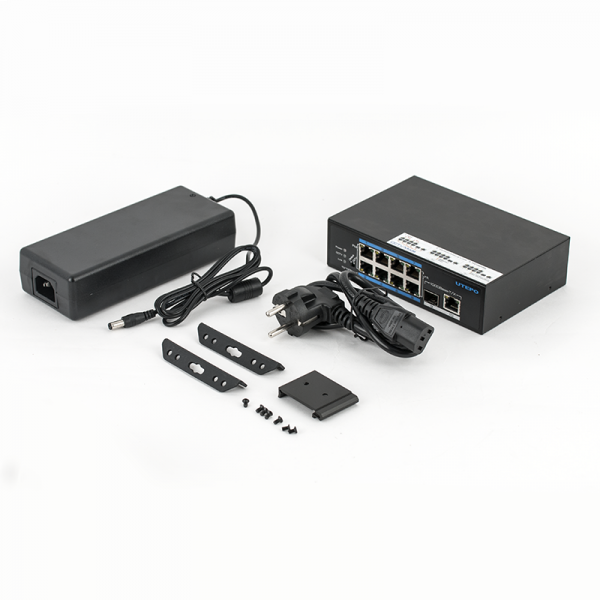

Este recomandat cu precadere pentru alimentarea camerelor IP datorita constructiei speciale ce permite transferul streamurilor fara intarzieri si a puterii de 30W furnizate/port (putere totala 240W, adaptor inclus 120W).
ATENTIE!!! Este obligatorie conectarea bornei de impamantare a echipamentului!
Tip switch: Switch industrial cu PoE+
Alimentare: 48 ~ 57 Vcc
Consum: <5W
Porturi downlink: 8x10/100Mbps Base-T
Porturi uplink: 1x10/100/1000Mbps Base-T, 1x1000Mbps Base-X, SFP
Porturi ethernet: 8
Distanta transmisie/receptie: downlink: 0~150m, CCTV: 0~250m, Ethernet uplink: 0~100m, SFP: in functie de modulul SFP
Standard: End-Span, IEEE802.3af/at, IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3ab 1000BASE-TX, IEEE802.3z 1000-SX/LX
Poe+: ≤30W pe fiecare port
Buget Poe: 240W
Capacitate trafic: 5.6Gbps
Rata redirectionare pachete: 4.2Mpps
Memorie: 1Mb
Tabela MAC: 8K
LED stare: Alimentare: 1xLED rosu CCTV: 1xLED verde Status porturi RJ45 downlink: Transfer date: 8xLED verde; Alimentare PoE+ 8xLED galben Status port RJ45 uplink: Transfer date: 1xLED verde; Act: 1xLED ga
Emc:
Protectie: ESD: Descarcare la contact: 6KV Descarcare prin aer: 8KV Standard: IEC61000-4-2 Descarcari electrice: 6KV Standard: IEC61000-4-5
Temperatura de functionare: -30°C ~ 65°C
Umiditate: 0%~95% (fara condensare)
Montare: Pe sina DIN / pe perete / pe birou
Dimensiuni: 159(L) × 110(l) × 44(H) mm
Material: Metal
Culoare echipament: Negru
Greutate: 0.50 Kg
Mod Cctv: Mod CCTV extinde distanta de transmisie pana la 250 m, latime de banda 10 Mbps (porturi downlink), porturile sunt izolate neputand comunica intre ele, pot comunica doar cu porturile uplink, suporta Po
