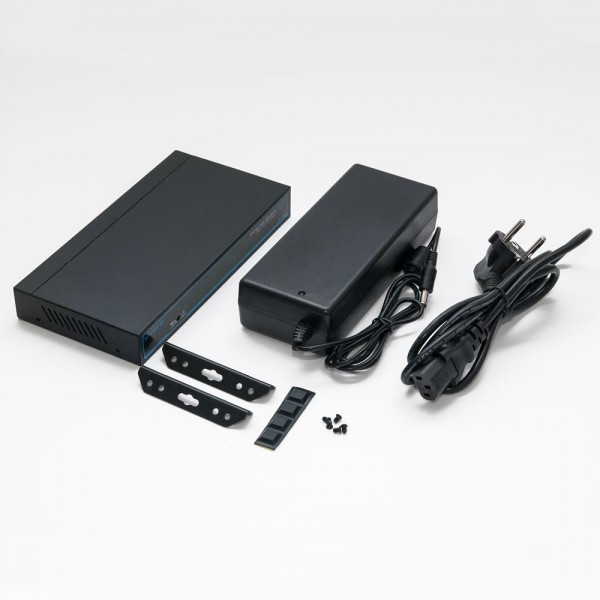

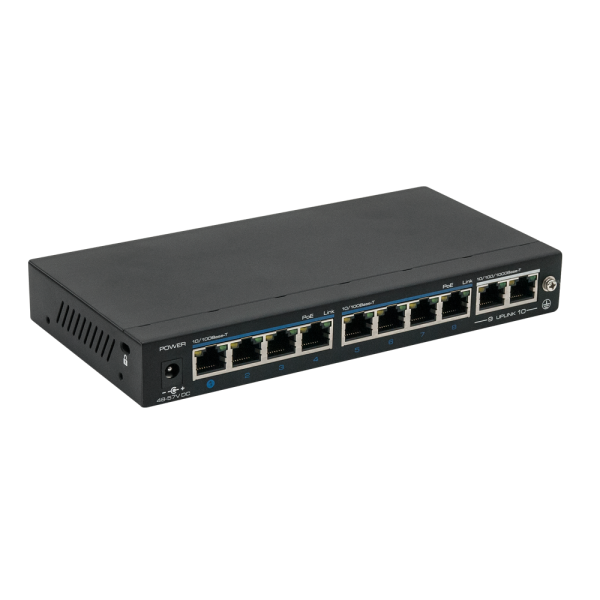

UTP3-SW08-TP120-A1 * Switch ethernet POE+, 8+2 porturi
![UTP3-SW08-TP120-A1 * Switch ethernet POE+, 8+2 porturi [1]](https://gomagcdn.ro/domains2/asfy.ro/files/product/original/utp3-sw08-tp120-a1-switch-ethernet-poe-8-2-porturi-661446.png "UTP3-SW08-TP120-A1 * Switch ethernet POE+, 8+2 porturi [1]")
![UTP3-SW08-TP120-A1 * Switch ethernet POE+, 8+2 porturi [2]](https://gomagcdn.ro/domains2/asfy.ro/files/product/original/utp3-sw08-tp120-a1-switch-ethernet-poe-8-2-porturi-149964.jpg "UTP3-SW08-TP120-A1 * Switch ethernet POE+, 8+2 porturi [2]")
![UTP3-SW08-TP120-A1 * Switch ethernet POE+, 8+2 porturi [0]](https://gomagcdn.ro/domains2/asfy.ro/files/product/medium/utp3-sw08-tp120-a1-switch-ethernet-poe-8-2-porturi-661446.png "UTP3-SW08-TP120-A1 * Switch ethernet POE+, 8+2 porturi [0]")
![UTP3-SW08-TP120-A1 * Switch ethernet POE+, 8+2 porturi [1]](https://gomagcdn.ro/domains2/asfy.ro/files/product/medium/utp3-sw08-tp120-a1-switch-ethernet-poe-8-2-porturi-149964.jpg "UTP3-SW08-TP120-A1 * Switch ethernet POE+, 8+2 porturi [1]")
Durata de livrare: 1
- Descriere
- Caracteristici
- Review-uri (0)
Switchul dispune de 8 porturi PoE+ 10/100Mpbs pentru conectarea dispozitivelor compatibile cum ar fi camere IP, telefoane IP, puncte de access (WiFi), separatoare PoE, etc.
De asemenea, dispune si de doua porturi ethernet 10/100/1000Mbps uplink.
Tip switch: Switch PoE+
Alimentare: 54.0Vcc, 2.22A
Consum:
Porturi downlink: 8x10/100Mbps, PoE+
Porturi uplink: 2x10/100/1000Mbps
Distanta transmisie/receptie: 100m/26W, 150m/24w, 200m/23W, 250m/21W
Standard: IEEE802.3 af, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, End-Span, IEEE802.3 at(PSE)
Poe+: ≤30W pe fiecare port
Buget Poe: <120W
Capacitate trafic: 5.6Gbps
Rata redirectionare pachete: 4.16Mpps
Memorie: 1.5Mb
Tabela MAC: 4K
LED stare: Indicator alimentare: 1xLED rosu Indicatori porturi downlink: 2xLED-uri, led galben - POE; led verde - Link Indicatori porturi uplink: 2xLED-uri: led verde - link; led galben - Act Indicatori mo
Emc:
Protectie: ESD: Descarcare la contact: 6KV Descarcare prin aer: 8KV Standard: IEC61000-4-2 6KV Standard: IEC61000-4-5
Temperatura de functionare: -10°C ~ 55°C
Umiditate: 5%~95% (fara condensare)
Dimensiuni: 200(l) × 101.8(A) × 27(H) mm
Material: Otel
Culoare echipament: Negru
Greutate: 0.50 Kg
Mod Cctv: Toate porturile de downlink pot comunica doar cu porturile de uplink, neputand comunica intre ele
Eft: Nivelul 2, Standard: IEC61000-4-4
Durata de viata: >50000h
