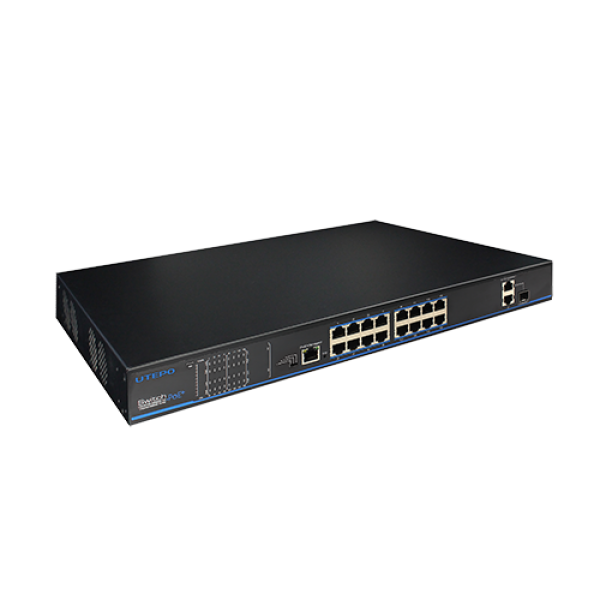

UTP3218TS-PSB * Switch ethernet PoE+, 16 porturi 10/100Mbps POE+ downlink, 2 porturi 10/100/1000Mbps uplink, 1 port SFP 1000Mbps uplink (combo), 1 port Management POE, functie POE Watchdog

Tip switch: Switch PoE+

Alimentare: 100 ~ 240Vac, 50~60Hz

Consum: ≤300W cu POE

Porturi downlink: 16x10/100Mbps, PoE+, Base-TX

Porturi uplink: 1000Mbps Base-X, SFP, 2x10/100/1000Mbps, Base-T

Distanta transmisie/receptie: 100m in mod standard, 250m in mod CCTV

Standard: IEEE802.3 af, IEEE802.3 at, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at

Capacitate trafic: 7.2Gbps, fara blocare

Rata redirectionare pachete: 5.4Mpps

Tabela MAC: 4K

LED stare: Indicator alimentare: Led rosu Consum POE: 0~100% Indicatori porturi downlink: Link, POE Indicatori porturi uplink: Link

Temperatura de functionare: -10°C ~ 50°C

Umiditate: 5%~95% (fara condensare)

Montare: Rack 19”, pe perete sau birou

Dimensiuni: 442(L) × 285(A) × 44(H) mm

Material: Otel

Culoare echipament: Negru

Greutate: 3.80 Kg

Porturi ethernet: 16

Management: Da

Poe+: ≤30W pe fiecare port

Buget Poe: ≤270W

Pini alimentare PoE: 1/2(+), 3/6(-)

Packet Buffer: 2.75Mbit

Emc: FCC 47 CFR Part 15 Class A
EN55032 Class A
IEC61000-4-2, Level 3: Contact Discharge: ±6kV, Air Discharge: ±8kV
IEC61000-4-3, Level 2: 3V/m
IEC61000-4-4, Level 2: 1kV
IEC61000-4-5, line to earth: 6kV
IEC61000-4-6, Level 2, (0.15MHz~80MHz)

Lvd: EN 62368-1:2014, EN 62328-A11:2017

Port Management: 1xPOE

Mod Cctv: 1. DEFAULT: Toate porturile downlink si uplink pot comunica intre ele, functie POE Watchdog. 2. VLAN: Toate porturile downlink pot comunica doar cu porturile uplink, neputand comunica intre ele, funct
