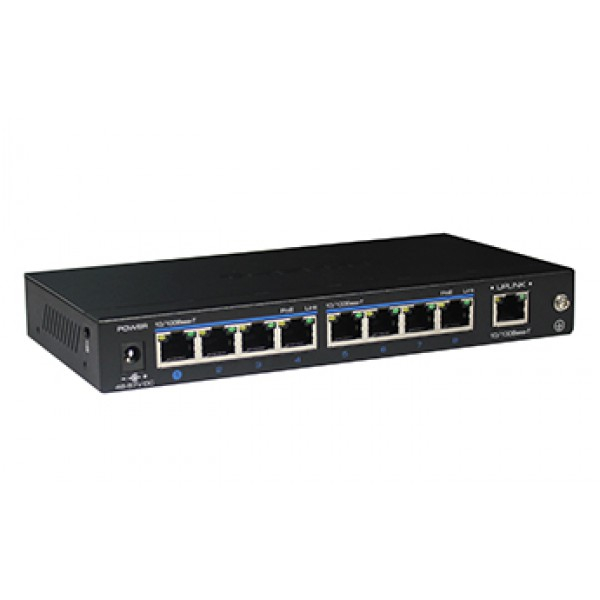

UTP1-SW0801-TP120 * Switch ethernet PoE+, 8 porturi 10/100 Mbps POE+ downlink, 1 port 10/100 Mbps uplink

Tip switch: Switch PoE+

Alimentare: 48 ~ 57Vcc, 120W

Consum: <5W

Porturi downlink: 1x10/100 Mbps, Base-TX, PoE+

Porturi uplink: 10/100 Mbps, Base-TX

Porturi ethernet: 8

Distanta transmisie/receptie: 100m/26W, 150m/24w, 200m/23W, 250m/21W

Standard: IEEE802.3 af, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, End-Span, IEEE802.3 at(PSE)

Poe+: ≤30W pe fiecare port

Buget Poe: <120W

Capacitate trafic: 1.8 Gbps

Rata redirectionare pachete: 1.34 Mpps

Memorie: 768 Kb

Tabela MAC: 2K

LED stare: Indicator alimentare: 1 LED rosu Indicatori porturi downlink: 2 LED-uri, led galben - POE; led verde - Link Indicatori porturi uplink: 2 LED-uri: led verde - link; led galben - Act Indica

Protectie: ESD: Descarcare la contact: 6KV Descarcare prin aer: 8KV Standard: IEC61000-4-2 6KV Standard: IEC61000-4-5

Temperatura de functionare: -10°C ~ 55°C

Umiditate: 5%~95% (fara condensare)

Dimensiuni: 200(l) × 101.8(A) × 27(H) mm

Material: Otel

Culoare echipament: Negru

Greutate: 0.50 Kg

Mod Cctv: 1. Toate porturile de downlink pot comunica doar cu porturile de uplink, neputand comunica intre ele. 2. Mod CCTV extinde distanta de transmisie pana la 250 m. 3. Latime de banda 10 Mbps (porturi down

Eft: Nivelul 3, Standard: IEC61000-4-4

Durata de viata: > 50000 h
