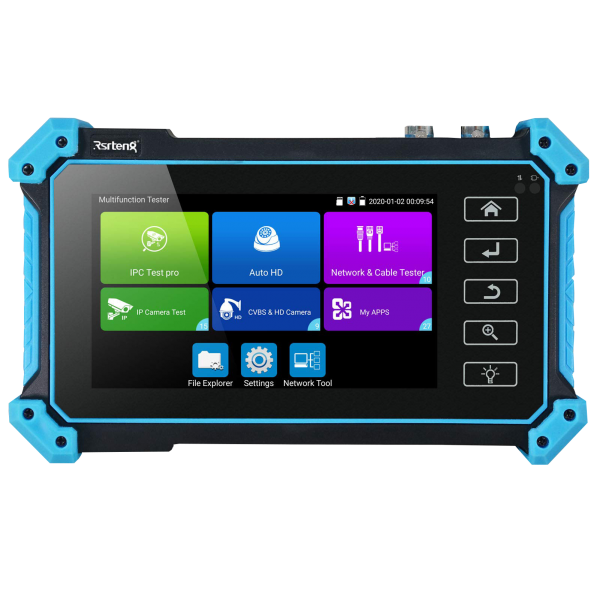

T-5200+ * Tester CCTV profesional, cu ecran tactil de 5.4” si sistem de operare Android

Tip produs: Tester profesional

Alimentare: 12Vcc/1A (alimentator inclus)

Temperatura de functionare: -10°C ~ 50°C

Umiditate: 30 ~ 90% (fara condensare)

Dimensiuni: 183(L) × 110(l) ×36.5(H) mm

Greutate: 0.32 Kg

Ecran: IPS 5.4”, cu touch-screen capacitiv

Rezolutie ecran: 1920 x 1152

Port retea: RJ45, Auto-adaptiv

Viteza de transfer: 10/100/1000Mbps

Baterii: 7.4Vcc Li-Ion Polimer, 3350mAh

Autonomie: pana la 6 ore

Configurare: Meniu OSD

Limba: Engleza, Poloneza, Italiana, Chineza, Coreeana, Rusa, Spaniola, Franceza, Japoneza

Wifi: 150Mbps, posibilitate de creare hotspot WiFi

Intrare Hdmi: 4K_3840x2160@30FPS, 720x480P@60FPS, 720x576P@60FPS, 1280x720P@25/30/50/60FPS, 1920x1080P@25/30/50/60FPS, 1920x1080i@50/60FPS, 800x600P@60FPS, 1024x768P@60FPS, 1280x1024P@60FPS

Intrare Vga: 1920x1200P@60FPS, 1920×1080P@60FPS, 1792×1344P@60FPS, 1680x1050P@60FPS, 1600x1200P/900P@60FPS, 1440x900P@ 60FPS, 1360x768P@60FPS, 1280x1024/960/800/768/720P@ 60FPS, 1152x870P@60FPS, 1024x768P@60FPS

Intrare Cvbs: auto-adaptiv NTSC/PAL

Port video: 1 x BNC

Control Ptz: Suporta RS485, rata biti 600-115200bps, compatibil cu mai mult de 30 de protocoale cum ar fi PELCO-D/P, Samsung, Panasonic etc.

Diverse: Camere IP/ 4K:     IP Discovery/ Rapid ONVIF/ IPC test/ RTSP play/ Client APK/ creare raport test
Hik test tool: Testare camere Hikvision, redare imagini, modificare parametri
DH test tool: Testare camere Dahua, redare imagini, modificare parametri
Camere HD:     3840x2160P@12.5/15FPS, 2880 x 1920P@20FPS, 2592x1944P@20FPS, 2560x1440P@25/30FPS, 1920x1080P@25/30FPS, 1280x720P@25/30/50/60FPS
Control UTC, accesare meniu OSD
HD-SDI/EX-SDI:     8MP: 720P@60fps, 1080P@60fps, 1080i@60fps   EX-SDI: 2560X1440P@25/30fps, 3840x2160P@25/30fps
Zoom: Suporta zoom 4x pe camere IP si analogice
Captura foto si playback: Suporta captura foto si video, cu functie de playback ulterior
IP discovery: Scanare automata pentru intreaga retea
Rapid ONVIF: Cautare rapida camere IP ONVIF, auto-logare si redare imagini
Iesire alimentare PoE: PoE+, 48Vcc, maxim 25.5W
Management alimentare: Vizualizare consum in timp real
TDR RJ45: Testare lungime fire din cablu UTP, status perechi fire, atenuare, impedanta, distorsiuni
Tester cablu UTP: Testare status conexiuni cablu UTP
Tester audio: 1 canal intrare audio
Monitor date: Captureaza si analizeaza datele trimise de la dispozitivul de control, poate trimite date in format HEX
Tester retea: Scaner adrese IP, scaner porturi, test link, PING, cautare rapida camere IP

Compresie Video: H.265, H.264

Tensiune iesire mod alimentare retea: 12V/3A

Actionare: Atingere

Auto-Oprire: 1~30 (min)
