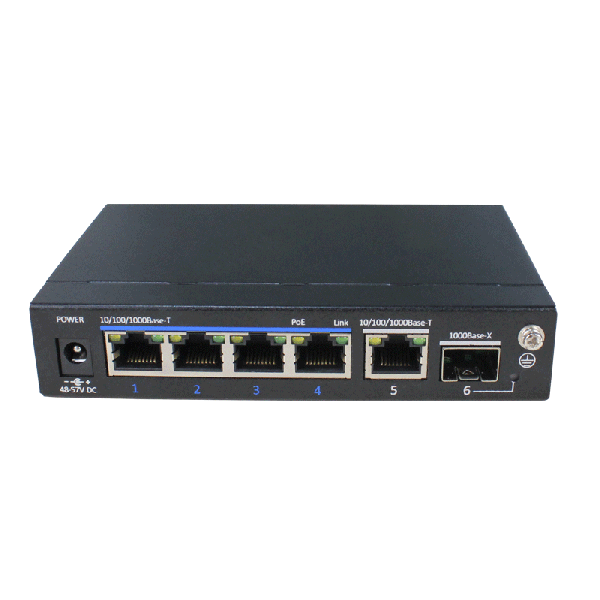

UTP3306TS-PSB * Switch ethernet PoE+ full gigabit , 4 porturi 10/100/1000Mbps POE+ downlink, 1 port 10/100/1000Mbps uplink, 1 port SFP 1000Mbps uplink

Tip switch: Switch PoE+

Alimentare: 54Vcc, 1.11A

Consum: ≤65W cu POE

Porturi downlink: 4x10/100/1000Mbps, PoE+, Base-TX

Porturi uplink: 1000Mbps Base-X, SFP, 10/100/1000Mbps, Base-T

Distanta transmisie/receptie: 100m in mod standard, 250m in mod CCTV

Standard: IEEE802.3 af, IEEE802.3 at, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at

Capacitate trafic: 12Gbps, fara blocare

Rata redirectionare pachete: 8.9Mpps

Tabela MAC: 8K, auto learning

LED stare: Indicator alimentare: Led rosu Indicatori porturi downlink: Link, POE Indicatori porturi uplink: Link, Act

Temperatura de functionare: -5°C ~ 45°C

Umiditate: 5%~95% (fara condensare)

Montare: Pe birou, pe perete

Dimensiuni: 135(L) × 86(A) × 27(H) mm

Material: Otel

Culoare echipament: Negru

Greutate: 0.30Kg

Porturi ethernet: 4

Poe+: ≤30W pe fiecare port

Buget Poe: ≤60W

Pini alimentare PoE: 1/2(+), 3/6(-)

Packet Buffer: 4Mbit

Mod Cctv: 1. DEFAULT: Toate porturile downlink si uplink pot comunica intre ele. 3. Mod CCTV: Extinde distanta de transmisie pana la 250m, latime de banda 10Mbps (porturi downlink). Porturile downlink nu pot co

Emc: FCC 47 CFR Part 15 Class A
EN55032 Class A
IEC61000-4-2, Level 3: Contact Discharge: ±6kV, Air Discharge: ±8kV
IEC61000-4-3, Level 2: 3V/m
IEC61000-4-4, Level 2: 1kV
IEC61000-4-5, line to earth: 6kV
IEC61000-4-6, Level 2, (0.15MHz~80MHz)

Lvd: EN 62368-1:2014, EN 62328-A11:2017
