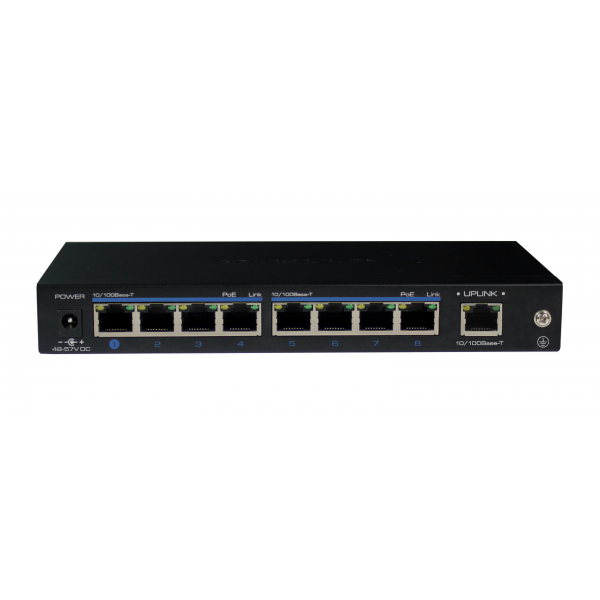

UTP3-SW08-TP120 * Switch ethernet PoE+, 8 porturi 10/100 Mbps POE+ downlink, 1 port 10/100 Mbps uplink
![UTP3-SW08-TP120 * Switch ethernet PoE+, 8 porturi 10/100 Mbps POE+ downlink, 1 port 10/100 Mbps uplink [1]](https://gomagcdn.ro/domains2/asfy.ro/files/product/original/utp3-sw08-tp120-switch-ethernet-poe-8-porturi-10-100-mbps-poe-downlink-1-port-10-100-mbps-uplink-768814.png "UTP3-SW08-TP120 * Switch ethernet PoE+, 8 porturi 10/100 Mbps POE+ downlink, 1 port 10/100 Mbps uplink [1]")
Durata de livrare: 1
- Descriere
- Caracteristici
- Review-uri (0)
Switch-ul dispune de 8 porturi PoE+ 10/100Mpbs pentru conectarea dispozitivelor compatibile cum ar fi camere IP, telefoane IP, puncte de access (WiFi), separatoare PoE, etc.
De asemenea, dispune si de un port ethernet 10/100Mbps uplink.
Tip switch: Switch PoE+
Alimentare: 48 ~ 57Vcc, 120W
Consum: <5W
Porturi downlink: 8x10/100 Mbps, Base-TX, PoE+
Porturi uplink: 1x10/100 Mbps, Base-TX
Porturi ethernet: 8
Distanta transmisie/receptie: 100m, 250m mod CCTV
Standard: IEEE802.3 af, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, End-Span, IEEE802.3 at(PSE)
Poe+: ≤30W pe fiecare port
Buget Poe: <120W
Pini alimentare PoE: 1/2(+), 3/6(-)
Capacitate trafic: 1.8Gbps
Rata redirectionare pachete: 1.34Mpps
Memorie: 768K
Tabela MAC: 2K
LED stare: Indicator alimentare: 1xLED rosu Indicatori porturi downlink: 2xLED-uri, led galben - POE; led verde - Link Indicatori porturi uplink: 2xLED-uri: led verde - link; led galben - Act Indicatori mo
Emc:
Protectie: ESD: Descarcare la contact: 6KV Descarcare prin aer: 8KV Standard: IEC61000-4-2 6KV Standard: IEC61000-4-5
Temperatura de functionare: -10°C ~ 55°C
Umiditate: 5%~95% (fara condensare)
Dimensiuni: 200(l) × 101.8(A) × 27(H) mm
Material: Otel
Culoare echipament: Negru
Greutate: 0.50 Kg
Mod Cctv: 1. Toate porturile de downlink pot comunica doar cu porturile de uplink, neputand comunica intre ele. 2. Mod CCTV extinde distanta de transmisie pana la 250 m. 3. Latime de banda 10 Mbps (porturi
Durata de viata: >50000h
