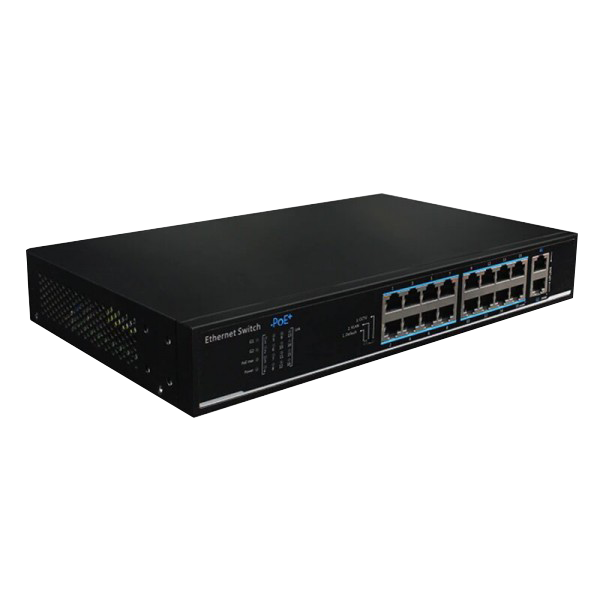

UTP1218-PSB150 * Switch ethernet PoE+, 16 porturi 10/100Mbps POE+ downlink, 2 porturi 10/100/100Mbps uplink, functie POE Watchdog

Tip switch: Switch PoE+

Alimentare: 100 ~ 240Vac, 50 ~ 60Hz

Consum: <15W, fara POE

Porturi downlink: 16x10/100Mbps, PoE+, Base-TX

Porturi uplink: 2x10/100/1000Mbps, Base-T

Porturi ethernet: 16

Distanta transmisie/receptie: 100m in mod standard, 250m in mod CCTV

Standard: IEEE802.3 af, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, End-Span, IEEE802.3 at(PSE)

Poe+: ≤30W pe fiecare port

Buget Poe: <135W

Pini alimentare PoE: 1/2(+), 3/6(-)

Capacitate trafic: 7.2Gbps

Rata redirectionare pachete: 5.4Mpps

Memorie: 4Mbit

Tabela MAC: 8K

LED stare: Indicator alimentare 1 LED: led rosu Depasire buget POE 1 LED: led rosu Indicatori porturi downlink 16 LED-uri port: led galben - POE Indicatori porturi uplink 2 LED-uri port: led verde - link

Emc: FCC 47 CFR Part 15 Class A
EN55032 Class A
IEC61000-4-2, Level 3: Contact Discharge: ±6kV, Air Discharge: ±8kV
IEC61000-4-3, Level 2: 3V/m IEC61000-4-4, Level 2: 1kV
IEC61000-4-5, line to earth: 6kV
IEC61000-4-6, Level 2, (0.15MHz~80MHz)

Protectie: ESD Descarcare la contact: 6KV, Descarcare prin aer: 8KV, Standard: IEC61000-4-2 Descarcari electrice 6KV Standard: IEC61000-4-5

Temperatura de functionare: -5°C ~ 55°C

Umiditate: 5%~95% (fara condensare)

Montare: Rack 19”, pe perete sau birou

Dimensiuni: 294(L) × 180(A) × 44(H) mm

Material: Otel

Culoare echipament: Negru

Greutate: 1.60 Kg

Mod Cctv: 1. DEFAULT: Toate porturile downlink si uplink pot comunica intre ele, functie POE Watchdog. 2. VLAN: Toate porturile downlink pot comunica doar cu porturile uplink, neputand comunica intre ele, funct
