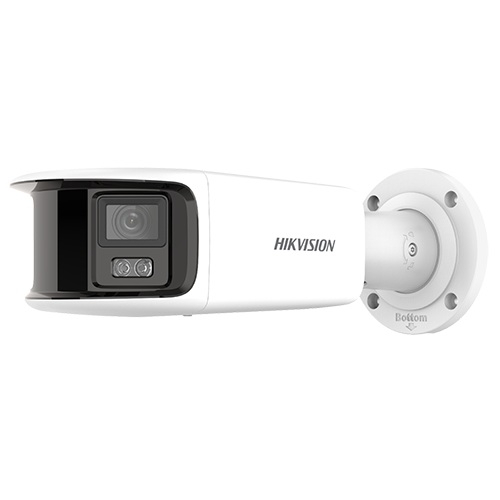

DS-2CD2T87G2P-LSU/SL(4mm)(C)(O-STD) * Camera BULLET, IP, WIDE, 8 Megapixel, LED, panoramic 180 grade, exterior/interior

Tip lentila: Fixa

Protectie intemperii: IP67

Senzor camera: 2 × 1/1.8" Progressive Scan CMOS

Rezolutie maxima: 5120 × 1440

Iluminare minima: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light

Viteza shutter electronic: 1/3 s to 1/100,000 s

Unghi fixare: Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°

Distanta focala: Fixed focal lens, Dual lens: 4 mm

Unghi de vizualizare: 4 mm, horizontal FOV: 180°, vertical FOV: 44°

Montare lentila: M16

Deschidere: F1.0

Iluminare nocturna: White Light

Distanta maxima IR: Up to 40 m

Dual Iluminator Ir+led: Yes

Fluxul principal: When WDR is On: 50 Hz: 12.5 fps (5120 × 1440) 60 Hz: 15 fps (5120 × 1440) When WDR is Off: 50 Hz: 20 fps (5120 × 1440) 60 Hz: 20 fps (5120 × 1440)

Fluxul secundar: When WDR is On: 50 Hz: 12.5 fps (1920 × 536, 960 × 272) 60 Hz: 15 fps (1920 × 536, 960 × 272) When WDR is Off: 50 Hz: 20 fps (1920 × 536, 960 × 272) 60 Hz: 20 fps (1920 × 536, 960 × 272)

Compresie Video: H.265+/H.265/H.264+/H.264

Video Bit Rate: 32 Kbps to 16 Mbps

Tip compresie H.264: Baseline Profile, Main Profile, High Profile

Tip compresie H.265: Main Profile

Control bitrate: CBR, VBR

Regiuni de interes: 1 fixed region for main stream

Tip audio: Mono sound

Filtrarea zgomotului de mediu: Yes

Rată de eșantionare audio: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Compresie Audio: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Securitate: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authenticati

Vizualizare live simultan: Up to 6 channels

SDK si API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

Protocoale: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets

Capacitate utilizatori: Up to 32 users 3 user levels: administrator, operator, and user

Software: iVMS-4200, Hik-Connect, Hik-Central

Compatibilitate browser: Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

WDR: 130 dB

SNR: ≥ 52 dB

Comutare zi/noapte: Day, Night, Auto, Schedule

Îmbunătățirea imaginii: BLC, HLC, 3D DNR

Setări imagine: Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Mască de confidențialitate: 8 rectangular privacy masks

Port retea: 1 RJ45 10 M/100 M self-adaptive Ethernet port

Card Memorie: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Microfon: Yes

Resetare: Yes

Evenimente: Motion detection (support alarm triggering by specified target types (human and vehicle)), alarm input and output, flashing alarm light output, audible alarm output, exception

Actiuni declansate: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, white light flashing

Alimentare: 12VDC ± 25%, PoE: IEEE 802.3af

Material: Metal

Dimensiuni: 118.6 mm × 105.1 mm × 305.4 mm (4.7" × 4.1" × 12")

Dimensiunea pachetului: 405 mm × 190 mm × 180 mm (16" × 7.5" × 7.1")

Greutate: 1420 g

Greutate cu ambalaj: 2228 g (4.9 lb.)

Temperatura de stocare: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Temperatura de functionare: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Limba: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croati

Functii standard: Anti-banding, heartbeat, password reset via email, password protection, one-key reset

Emc: FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7

Siguranţă: UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017

Certificate mediu: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Protectie: IP67: IEC 60529-2013

DORI: DORI → 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

Distanta vizualizare: 3.6 m to ∞

Interfata audio: 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output

Alarma: 1 input, 1 output (max. 24 VDC, 1 A)

Stocare în rețea: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), NVR, Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Comutarea parametrilor imaginii: Yes

Smart Event: Scene change detection

Protecție perimetrală: Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

Difuzor: Max. power consumption: 1 W, max. sound pressure: 10 cm: 97 dB

Consum: 0.88 A
