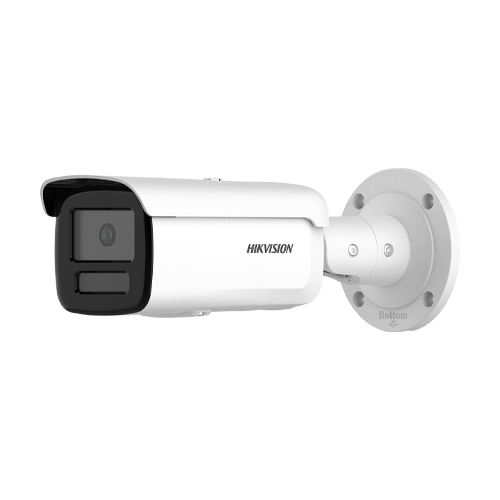

DS-2CD2T66G2H-4I(2.8mm) * Camera IP 6 Mp, 2.8 mm, Powered by Darkfighter IR 80m, AcuSense

Tip lentila: Fixa

Protectie intemperii: IP67

Senzor camera: 1/2.4" Progressive Scan CMOS

Rezolutie maxima: 3200 × 1800

Iluminare minima: Color: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with IR

Viteza shutter electronic: 1/3 s to 1/100,000 s

Zi & Noapte: IR cut filter

Unghi fixare: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Distanta focala: Fixed focal lens, 2.8 and 4 mm optional

Unghi de vizualizare: 2.8 mm, horizontal FOV 114.8°, vertical FOV 60°, diagonal FOV 143.5° 4 mm, horizontal FOV 94°, vertical FOV 50.2°, diagonal FOV 112°

Montare lentila: M12

Deschidere: F1.0

Iluminare nocturna: IR

Distanta maxima IR: 2I: up to 60 m 4I: up to 80 m

Dual Iluminator Ir+led: Yes

Lungime unda optica: 850 nm

Fluxul principal: 50 Hz: 20 fps (3200 × 1800) 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3200 × 1800) 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Fluxul secundar: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Compresie Video: H.265+/H.265/H.264+/H.264

Video Bit Rate: 32 Kbps to 16 Mbps

Tip compresie H.264: Baseline Profile, Main Profile, High Profile

Tip compresie H.265: Main Profile

Control bitrate: CBR, VBR

Regiuni de interes: 1 fixed region for main stream and sub-stream

Securitate: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and

Vizualizare live simultan: Up to 6 channels

SDK si API: ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

Protocoale: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP

Capacitate utilizatori: Up to 32 users 3 user levels: administrator, operator, and user

Software: iVMS-4200, Hik-Connect, Hik-Central

Compatibilitate browser: Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

WDR: 120dB

SNR: ≥ 52 dB

Comutare zi/noapte: Day, Night, Auto, Schedule

Îmbunătățirea imaginii: BLC, HLC, 3D DNR

Setări imagine: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Mască de confidențialitate: 4 programmable polygon privacy masks

Port retea: 1 RJ45 10 M/100 M self-adaptive Ethernet port

Card Memorie: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Resetare: Yes

Evenimente: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception

Actiuni declansate: Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email

Alimentare: 12VDC ± 25%, PoE: IEEE 802.3af

Material: Metal

Dimensiuni: 286.7 mm × 93.3 mm × 91.2 mm (11.3" × 3.7" × 3.6")

Dimensiunea pachetului: 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")

Greutate: 1120 g

Greutate cu ambalaj: 1804 g (3.6 lb.)

Temperatura de stocare: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Temperatura de functionare: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Limba: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croati

Functii standard: Heartbeat, mirror, password reset via email, pixel counter, anti-banding

Emc: CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015

Siguranţă: CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, LOA: IEC/EN 60950-1

Certificate mediu: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Protectie: IP67: IEC 60529-2013

DORI: DORI → 2.8 mm: D: 64 m, O: 25 m, R: 12 m, I: 6 m 4 mm: D: 77 m, O: 30 m, R: 15 m, I: 7 m

Distanta vizualizare: 2.8 mm: 1.7 m to ∞ 4 mm: 2.2 m to ∞

Al treilea flux: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.

Stocare în rețea: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)

Comutarea parametrilor imaginii: Yes

Smart Event: Scene change detection

Captură a feței: Yes

Protecție perimetrală: Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

Consum: 0.83 A
