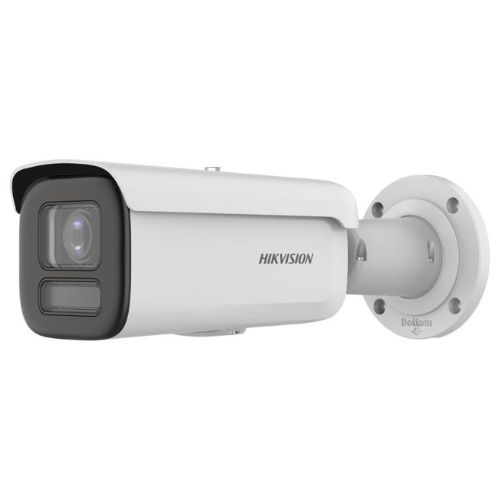

DS-2CD2687G2HT-LIZS(2.8-12mm)(eF)(O-STD) * Camera IP HIKVISION, 8 Mp, Varifocal Motorizat 2.8-12 mm, Dual Light Smart Hybrid 60m, ColorVu

Tip lentila: Fixa

Protectie intemperii: IP67, IK10

Senzor camera: 1/1.8" Progressive Scan CMOS

Rezolutie maxima: 3840 × 2160

Iluminare minima: Color: 0.0028 Lux @ (F1.2, AGC ON), 0 Lux with light

Viteza shutter electronic: 1/3 s to 1/100,000 s

Zi & Noapte: IR cut filter

Unghi fixare: Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°

Distanta focala: Varifocal Lens, motorized lens, 2.8 to 12 mm

Unghi de vizualizare: 2.8 to 12 mm, horizontal FOV 112.3° to 41.2°, vertical FOV 58.1° to 23.1°, diagonal FOV 137.4° to 47.3°

Montare lentila: Integrated

Deschidere: F1.2

Iluminare nocturna: IR, White Light

Distanta maxima IR: Up to 60 m

Dual Iluminator Ir+led: Yes

Lungime unda optica: 850 nm

Fluxul principal: 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps(3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Fluxul secundar: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Compresie Video: H.265+/H.265/H.264+/H.264

Video Bit Rate: 32 Kbps to 16 Mbps

Tip compresie H.264: Baseline Profile, Main Profile, High Profile

Tip compresie H.265: Main Profile

Control bitrate: CBR, VBR

Regiuni de interes: 1 fixed region for main stream and sub-stream

Filtrarea zgomotului de mediu: Yes

Rată de eșantionare audio: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Compresie Audio: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)

Securitate: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and

Vizualizare live simultan: Up to 6 channels

SDK si API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

Protocoale: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP

Capacitate utilizatori: Up to 32 users 3 user levels: administrator, operator, and user

Software: iVMS-4200, Hik-Connect, Hik-Central

Compatibilitate browser: Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

WDR: 130 dB

SNR: ≥ 52 dB

Comutare zi/noapte: Day, Night, Auto, Schedule

Îmbunătățirea imaginii: BLC, HLC, 3D DNR

Setări imagine: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Mască de confidențialitate: 4 programmable polygon privacy masks

Port retea: 1 RJ45 10 M/100 M self-adaptive Ethernet port

Card Memorie: Built-in memory card slot, support microSD card, up to 512 GB

Resetare: Yes

Evenimente: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception

Actiuni declansate: Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email, audible warning, trigger alarm output

Alimentare: 12VDC ± 25%, PoE: IEEE 802.3af

Material: Metal

Dimensiuni: 298 mm × 97.9 mm × 95.7 mm (11.8" × 3.9" × 3.8")

Dimensiunea pachetului: 386 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")

Greutate: 1085 g

Greutate cu ambalaj: 1639 g (3.6 lb.)

Temperatura de stocare: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Temperatura de functionare: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Limba: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croati

Functii standard: Heartbeat, mirror, password reset via email, pixel counter, anti-banding

Emc: CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014

Siguranţă: UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017

Certificate mediu: CE-RoHS: 2011/65/EU

Protectie: IP67: IEC 60529-2013, IK10: IEC 62262:2002

DORI: DORI → Wide: D: 87 m, O: 35 m, R: 17 m, I: 9 m Tele: D: 216 m, O: 86 m, R: 43 m, I: 22 m

Distanta vizualizare: 1 m to ∞

Interfata audio: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude

Alarma: 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)

Al treilea flux: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.

Stocare în rețea: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)

Comutarea parametrilor imaginii: Yes

Smart Event: Scene change detection

Captură a feței: Yes

Protecție perimetrală: Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

Consum: 1.21 A
