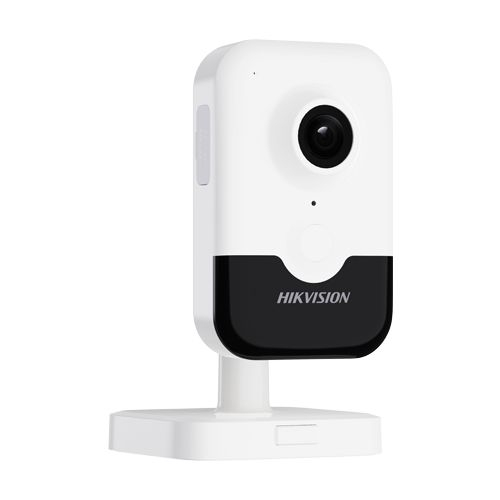

DS-2CD2423G2-IW(2.8mm)(W) * Camera IP HIKVISION, 2 Mp, 2.8 mm, IR 10m, Wi-Fi

Senzor camera: 1/3" Progressive Scan CMOS

Rezolutie maxima: 1920 × 1080

Iluminare minima: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Viteza shutter electronic: 1/3 s to 1/100,000 s

Zi & Noapte: IR cut filter

Unghi fixare: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Unghi de vizualizare: 2.8 mm, horizontal FOV 92°, vertical FOV 50°, diagonal FOV 110° 4 mm, horizontal FOV 75°, vertical FOV 41°, diagonal FOV 89°

Montare lentila: M12

Deschidere: F1.6

Iluminare nocturna: IR

Distanta maxima IR: Up to 10 m

Dual Iluminator Ir+led: Yes

Lungime unda optica: 850 nm

Fluxul principal: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 768 × 432) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 768 × 432)

Fluxul secundar: 50 Hz: 25 fps (768 × 432, 512 × 288) 60 Hz: 30 fps (768 × 432, 512 × 288)

Compresie Video: H.265/H.264

Video Bit Rate: Up to 1 M bps

Tip compresie H.264: Baseline Profile/Main Profile/High Profile

Tip compresie H.265: Main Profile

Control bitrate: CBR/VBR

Filtrarea zgomotului de mediu: Yes

Rată de eșantionare audio: 8 kHz/16 kHz

Compresie Audio: G.711/AAC-LC

Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 to 64 Kbps (AAC-LC)

Securitate: Password protection, HTTPS encryption, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE for Open Network Video Interface

Vizualizare live simultan: Up to 4 channels

SDK si API: ONVIF, SDK

Protocoale: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv4, UDP, Bonjour, SSL/TLS

Capacitate utilizatori: Administrator

Software: iVMS-4200, Hik-Connect, Hik-Partner-Pro

WDR: Digital WDR

Comutare zi/noapte: Day, Night, Auto, Schedule

Setări imagine: Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software

Mască de confidențialitate: 4 programmable polygon privacy masks

Port retea: 1 RJ45 10 M/100 M self-adaptive Ethernet port

Card Memorie: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Microfon: Yes, 1 built-in microphone

Resetare: Yes

Evenimente: Motion detection (support alarm triggering by specified target types (human)), exception

Actiuni declansate: Upload to memory card, notify surveillance center, trigger capture, audible warning

Alimentare: 12VDC ± 25%, PoE: IEEE 802.3af

Material: Plastic

Dimensiuni: 102.9 mm × 65.2 mm × 32.6 mm (4.1" × 2.6" × 1.3")

Dimensiunea pachetului: 150 mm × 125 mm × 99 mm (5.9" × 4.9" × 3.9")

Greutate: 120 g

Greutate cu ambalaj: 430 g (0.9 lb.)

Temperatura de stocare: -10 °C to 45 °C (14 °F to 113 °F). Humidity 95% or less (non-condensing)

Temperatura de functionare: -10 °C to 45 °C (14 °F to 113 °F). Humidity 95% or less (non-condensing)

Functii standard: Heartbeat, Mirror

Emc: CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014)

Siguranţă: CE-LVD (EN 62368-1:2014/A11:2017)

Certificate mediu: CE-RoHS (2011/65/EU) WEEE (2012/19/EU)

DORI: DORI → 2.8 mm: D: 38.6 m, O: 15.3 m, R: 7.7 m, I: 3.9 m 4 mm: D: 54.8 m, O: 21.7 m, R: 11.0 m, I: 5.5 m

Comutarea parametrilor imaginii: Yes

Difuzor: Yes, 1 built-in speaker

Consum: 0.4 A
