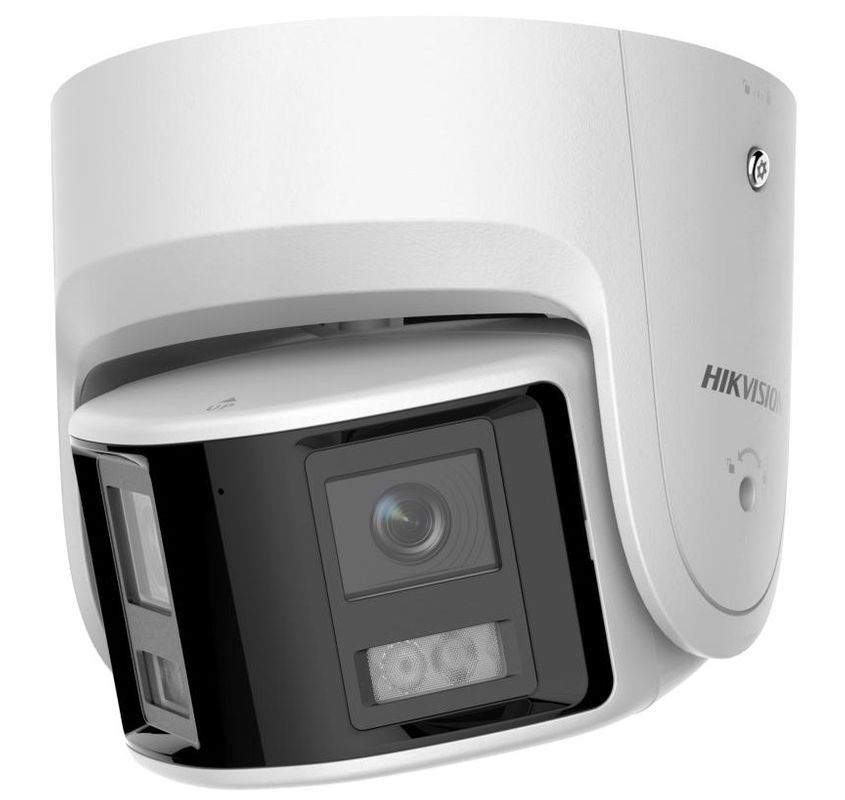

DS-2CD2346G2P-ISU/SL(2.8mm)(C)(O-STD) * Camera IP HIKVISION, 4 Mp, 2.8 mm, IR 30m, Acusense

Tip lentila: Fixa

Protectie intemperii: IP67

Senzor camera: 2 × 1/2.5" Progressive Scan CMOS

Rezolutie maxima: 3040 × 1368

Iluminare minima: Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Viteza shutter electronic: 1/3 s to 1/100,000 s

Zi & Noapte: IR cut filter

Unghi fixare: Pan: 0° to 30°, tilt: -75° to 75°

Distanta focala: Fixed focal lens, dual lens, 2.8 mm

Unghi de vizualizare: 2.8 mm, horizontal FOV: 180°, vertical FOV: 81°

Montare lentila: M12

Deschidere: F1.6

Iluminare nocturna: IR

Distanta maxima IR: Up to 30 m

Dual Iluminator Ir+led: Yes

Lungime unda optica: 850 nm

Fluxul principal: 50 Hz: 25 fps (3040 × 1368) 60 Hz: 24 fps (3040 × 1368)

Fluxul secundar: 50 Hz: 25 fps (1200 × 536, 960 × 432) 60 Hz: 24 fps (1200 × 536, 960 × 432)

Compresie Video: H.265+/H.265/H.264+/H.264

Video Bit Rate: 32 Kbps to 8 Mbps

Tip compresie H.264: Baseline Profile, Main Profile, High Profile

Tip compresie H.265: Main Profile

Control bitrate: CBR, VBR

Regiuni de interes: 1 fixed region for main stream

Tip audio: Mono sound

Filtrarea zgomotului de mediu: Yes

Rată de eșantionare audio: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Compresie Audio: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Securitate: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authenticati

Vizualizare live simultan: Up to 6 channels

SDK si API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK

Protocoale: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Websocket, Websockets

Capacitate utilizatori: Up to 32 users 3 user levels: administrator, operator, and user

Software: iVMS-4200, Hik-Connect, Hik-Central

Compatibilitate browser: Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

WDR: 120dB

SNR: ≥ 52 dB

Comutare zi/noapte: Day, Night, Auto, Schedule

Îmbunătățirea imaginii: BLC, HLC, 3D DNR

Setări imagine: Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Mască de confidențialitate: 8 rectangular privacy masks

Port retea: 1 RJ45 10 M/100 M self-adaptive Ethernet port

Card Memorie: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Microfon: Yes

Resetare: Yes

Evenimente: Motion detection (support alarm triggering by specified target types (human and vehicle)), alarm input and output, flashing alarm light output, audible alarm output, exception

Actiuni declansate: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, white light flashing

Alimentare: 12VDC ± 25%, PoE: IEEE 802.3af

Material: Metal

Dimensiuni: Ø140 mm × 145.6 mm (Ø5.5" × 5.7")

Dimensiunea pachetului: 230 mm × 230 mm × 230 mm (9" × 9" × 9")

Greutate: 940 g

Greutate cu ambalaj: 1700 g (3.7 lb.)

Temperatura de stocare: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Temperatura de functionare: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Limba: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croati

Functii standard: Anti-banding, heartbeat, flash log, pixel counter

Emc: FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7

Siguranţă: UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017

Certificate mediu: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Protectie: IP67: IEC 60529-2013

DORI: DORI → 2.8 mm, D: 37 m, O: 15 m, R: 7 m, I: 3.5 m

Interfata audio: 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output

Alarma: 1 input, 1 output (max. 24 VDC, 1 A)

Stocare în rețea: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Comutarea parametrilor imaginii: Yes

Smart Event: Scene change detection

Protecție perimetrală: Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

Difuzor: Max. power consumption: 1.2 W, max. sound pressure level: 10 cm: 95 dB

Consum: 0.88 A
