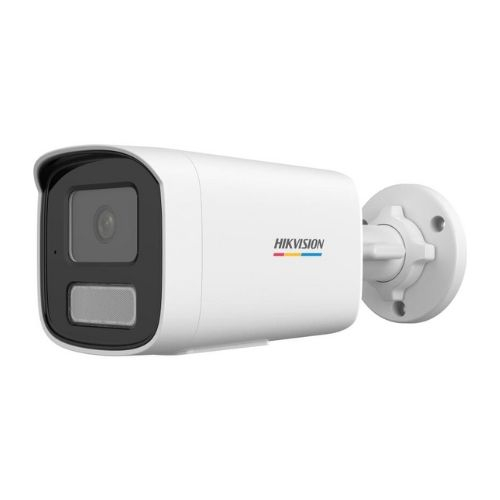

DS-2CD1T27G2H-LIU 2.8MM * Camera IP HIKVISION, 2 Mp, 2.8 mm, Dual Light Smart Hybrid 50m, ColorVu

Tip lentila: Fixa

Protectie intemperii: IP67

Senzor camera: 1/2.8" Progressive Scan CMOS

Rezolutie maxima: 1920 × 1080

Iluminare minima: Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light

Viteza shutter electronic: 1/3 s to 1/100,000 s

Zi & Noapte: IR cut filter

Unghi fixare: Pan: 0° to 355°, tilt: 0° to 180°, rotate: 0° to 355°

Distanta focala: Fixed focal lens, 2.8 and 4 mm optional

Unghi de vizualizare: 2.8 mm, horizontal FOV 115°, vertical FOV 60°, diagonal FOV 143° 4 mm, horizontal FOV 94°, vertical FOV 50°, diagonal FOV 110°

Montare lentila: M12

Deschidere: F1.0

Iluminare nocturna: IR, White Light

Distanta maxima IR: Up to 50 m

Dual Iluminator Ir+led: Yes

Lungime unda optica: 850 nm

Fluxul principal: 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Fluxul secundar: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)

Compresie Video: H.265+/H.265/H.264+/H.264

Video Bit Rate: 32 Kbps to 8 Mbps

Tip compresie H.264: Baseline Profile, Main Profile, High Profile

Tip compresie H.265: Main Profile

Control bitrate: CBR, VBR

Regiuni de interes: 1 fixed region for main stream

Tip audio: Mono sound

Filtrarea zgomotului de mediu: Yes

Rată de eșantionare audio: 8 kHz/16 kHz

Compresie Audio: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Securitate: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication

Vizualizare live simultan: Up to 6 channels

SDK si API: Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)), ISAPI, SDK

Protocoale: IPv4, IPv6, TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, UDP, QoS, FTP, SMTP, UPnP

Capacitate utilizatori: Up to 32 users 3 user levels: administrator, operator, and user

Software: iVMS-4200, Hik-Connect

Compatibilitate browser: Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

WDR: Digital WDR

SNR: ≥ 52 dB

Comutare zi/noapte: Day, Night, Auto, Schedule

Îmbunătățirea imaginii: BLC, HLC, 3D DNR

Setări imagine: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Mască de confidențialitate: 4 programmable polygon privacy masks

Port retea: 1 RJ45 10 M/100 M self-adaptive Ethernet port

Card Memorie: -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Microfon: Yes, 1 built-in microphone

Resetare: -F: Yes

Evenimente: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception

Actiuni declansate: Upload to memory card (-F model supports), trigger recording (-F model supports), upload to FTP, notify surveillance center, send email, trigger capture

Alimentare: 12VDC ± 25%, PoE: IEEE 802.3af

Material: Metal & Plastic

Dimensiuni: 81 mm × 83.7 mm × 201.96 mm (3.17" × 3.29" × 7.95")

Dimensiunea pachetului: 150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55")

Greutate: 550 g

Greutate cu ambalaj: 800 g (1.8 lb.)

Temperatura de stocare: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Temperatura de functionare: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Limba: English, Ukrainian

Functii standard: Heartbeat, anti-banding, mirror, password protection, password reset via email

Emc: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7

Siguranţă: CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

Certificate mediu: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Protectie: IP67: IEC 60529-2013

DORI: DORI → 2.8 mm, D: 64 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

Consum: 0.52 A
