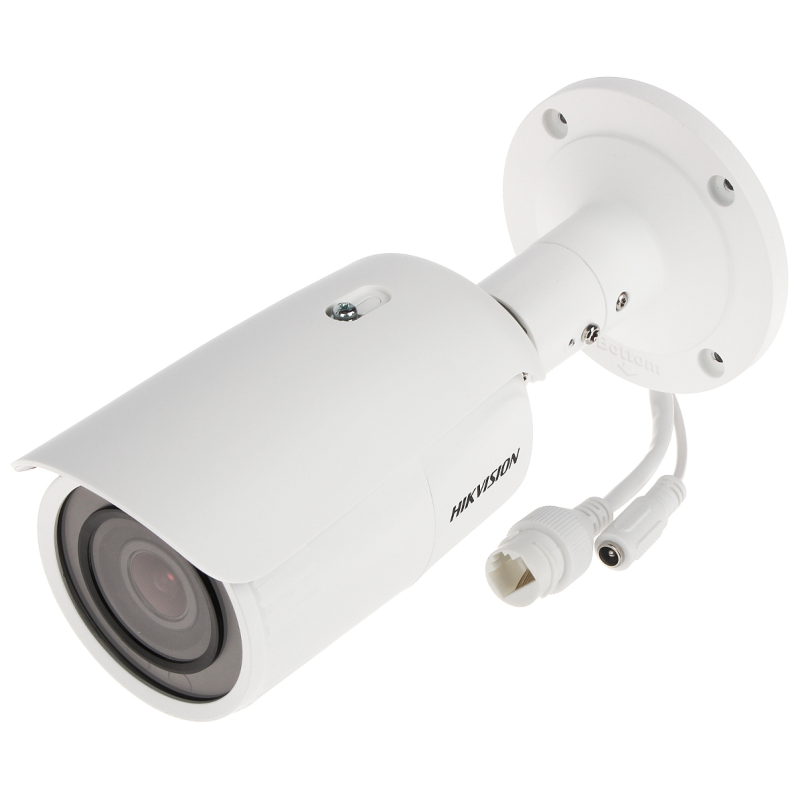

DS-2CD1623G0-IZ(2.8-12mm) * Camera IP HIKVISION, 2 Mp, Varifocal 2.8-12 mm, IR 50m

Tip lentila: Fixa

Senzor camera: 1/2.7" Progressive Scan CMOS

Rezolutie maxima: 1920 × 1080

Iluminare minima: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Zi & Noapte: IR cut filter

Unghi fixare: Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360°

Distanta focala: Varifocal Lens, motorized lens, 2.8 to 12 mm

Unghi de vizualizare: 2.8 to 12 mm: horizontal FOV 96° to 36°, vertical FOV 51° to 20°, diagonal FOV 113° to 42°

Montare lentila: Ø14

Deschidere: F1.6

Distanta maxima IR: Up to 50 m

Lungime unda optica: 850 nm

Fluxul principal: 50 Hz: 25 fps (1920 × 1080, 1280 × 720), 60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Fluxul secundar: 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)

Compresie Video: H.265+/H.265/H.264+/H.264

Video Bit Rate: 32 Kbps to 8 Mbps

Tip compresie H.264: Baseline Profile/Main Profile/High Profile

Tip compresie H.265: Main Profile

Regiuni de interes: 1 fixed region for main stream

Filtrarea zgomotului de mediu: -S: Yes

Rată de eșantionare audio: -S: 8 kHz/16 kHz

Compresie Audio: -S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC

Audio Bit Rate: -S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)

Vizualizare live simultan: Up to 6 channels

SDK si API: Open Network Video Interface, ISAPI

Protocoale: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS

Capacitate utilizatori: Up to 32 users. 3 levels: administrator, operator and user

Software: iVMS-4200, Hik-Connect

Compatibilitate browser: Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+

Comutare zi/noapte: Auto, Schedule, Day, Night

Îmbunătățirea imaginii: BLC, 3D DNR

Setări imagine: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Port retea: 1 RJ45 10 M/100 M self-adaptive Ethernet port

Card Memorie: Built-in memory card slot, support microSD card, up to 256 GB

Resetare: Yes

Evenimente: Motion detection, video tampering alarm, exception

Actiuni declansate: -S: Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture, trigger alarm output

Alimentare: 12VDC ± 25%, PoE: IEEE 802.3af

Dimensiunea pachetului: 315 mm × 137 mm × 141 mm (12.4" × 5.4" × 5.6")

Greutate cu ambalaj: 1550 g (3.4 lb.)

Temperatura de stocare: -30 °C to +60 °C (-22 °F to +140 °F). Humidity 95% or less (non-condensing)

Temperatura de functionare: -30 °C to +60 °C (-22 °F to +140 °F). Humidity 95% or less (non-condensing)

Limba: English, Ukrainian

Functii standard: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Emc: FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)

Siguranţă: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)

Certificate mediu: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Interfata audio: -S: 1 input (line in), 1 output (line out), mono sound

Alarma: -S: 1 input,1 output (max. 12 VDC, 30 mA)

Consum: 0.9 A
