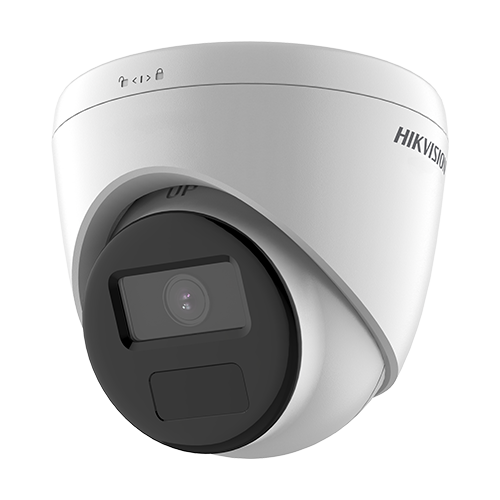

DS-2CD1341G0-I(2.8mm) * Camera IP 4 Mp, 2.8mm, IR 20m

Tip lentila: Fixa

Protectie intemperii: IP67

Senzor camera: 1/2.8" Progressive Scan CMOS

Rezolutie maxima: 2560 × 1440

Iluminare minima: Color: 0.01 Lux @ (F2.2, AGC ON), B/W: 0 Lux with IR

Viteza shutter electronic: 1/3 s to 1/100,000 s

Zi & Noapte: IR cut filter

Unghi fixare: Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Distanta focala: Fixed focal lens, 2.8 and 4 mm optional

Unghi de vizualizare: 2.8 mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 123° 4 mm, horizontal FOV 82°, vertical FOV 45°, diagonal FOV 98°

Montare lentila: M12

Deschidere: F2.2

Iluminare nocturna: IR

Distanta maxima IR: Up to 20 m

Dual Iluminator Ir+led: Yes

Lungime unda optica: 850 nm

Fluxul principal: 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720)

Fluxul secundar: 50 Hz: 25 fps (1280 × 720，640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720，640 × 480, 640 × 360)

Compresie Video: H.265+/H.265/H.264+/H.264

Video Bit Rate: 32 Kbps to 8 Mbps

Tip compresie H.264: Baseline Profile, Main Profile, High Profile

Tip compresie H.265: Main Profile

Control bitrate: CBR, VBR

Regiuni de interes: 1 fixed region for main stream

Securitate: Password protection, complicated password, watermark, basic and digest authentication for HTTP, security audit log, host authentication (MAC address)

Vizualizare live simultan: Up to 6 channels

SDK si API: ONVIF (Profile S, Profile T), ISAPI, SDK

Protocoale: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SNMP, DDNS

Capacitate utilizatori: Up to 32 users 3 user levels: administrator, operator, and user

Software: iVMS-4200

Compatibilitate browser: Local service: Chrome 80+, Firefox 80+, Edge 89+, IE 11

WDR: Digital WDR

SNR: ≥ 52 dB

Comutare zi/noapte: Day, Night, Auto, Schedule

Îmbunătățirea imaginii: BLC, HLC, 3D DNR

Setări imagine: Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Mască de confidențialitate: 1 programmable polygon privacy mask

Port retea: 1 RJ45 10 M/100 M self-adaptive Ethernet port

Evenimente: Motion detection (support alarm triggering by specified target type (human)), exception

Actiuni declansate: Notify surveillance center, send email, trigger capture

Alimentare: 12VDC ± 25%, PoE: IEEE 802.3af

Material: Plastic

Dimensiuni: Ø109.9 mm × 103.6 mm (Ø4.3" × 4.1")

Dimensiunea pachetului: 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")

Greutate: 325 g

Greutate cu ambalaj: 563 g (1.0 lb.)

Temperatura de stocare: -30 °C to 45 °C (-22 °F to 113 °F). Humidity 95% or less (non-condensing)

Temperatura de functionare: -30 °C to 45 °C (-22 °F to 113 °F). Humidity 95% or less (non-condensing)

Limba: English, Ukrainian

Functii standard: Heartbeat, anti-banding, mirror, password protection, password reset via email

Emc: CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, KC: KN32: 2015, KN35: 2015

Siguranţă: CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017

Certificate mediu: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Protectie: IP67: IEC 60529-2013

DORI: DORI → 2.8 mm, D: 53 m, O: 21 m, R: 10 m, I: 5 m 4 mm, D: 67 m, O: 26 m, R: 13 m, I: 6 m

Distanta vizualizare: 2.8 mm: 0.9 m to ∞ 4 mm: 1.1 m to ∞

Consum: 0.42 A
