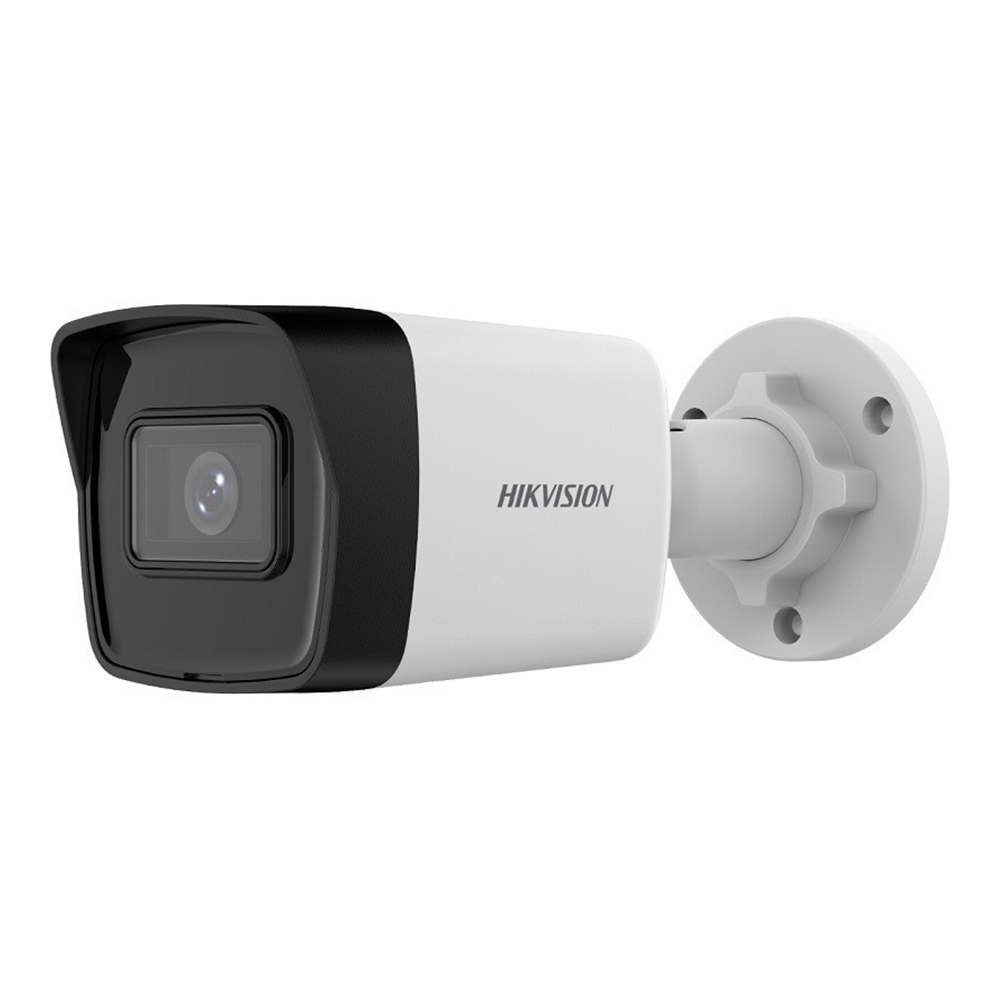

DS-2CD1043G2-I28 * Camera IP 4 Mp, 2.8 mm, IR 30m

Tip lentila: Fixa

Protectie intemperii: IP67

Senzor camera: 1/3" Progressive Scan CMOS

Rezolutie maxima: 2560 × 1440

Iluminare minima: Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR

Viteza shutter electronic: 1/3 s to 1/100,000 s

Zi & Noapte: IR cut filter

Unghi fixare: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Distanta focala: Fixed focal lens, 2.8 and 4 mm optional

Unghi de vizualizare: 2.8 mm, horizontal FOV 99°, vertical FOV 55°, diagonal FOV 116° 4 mm, horizontal FOV 76°, vertical FOV 41°, diagonal FOV 90°

Montare lentila: M12

Deschidere: F2.0

Iluminare nocturna: IR

Distanta maxima IR: Up to 30 m

Dual Iluminator Ir+led: Yes

Lungime unda optica: 850 nm

Fluxul principal: 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720)

Fluxul secundar: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)

Compresie Video: H.265+/H.265/H.264+/H.264

Video Bit Rate: 32 Kbps to 8 Mbps

Tip compresie H.264: Baseline Profile/Main Profile/High Profile

Tip compresie H.265: Main Profile

Control bitrate: CBR/VBR

Regiuni de interes: 1 fixed region for main stream

Tip audio: -U: Mono sound

Filtrarea zgomotului de mediu: -U: Yes

Rată de eșantionare audio: -U: 8 kHz/16 kHz

Compresie Audio: -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Bit Rate: -U: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Securitate: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication

Vizualizare live simultan: Up to 6 channels

SDK si API: Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)), ISAPI, SDK

Protocoale: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP

Capacitate utilizatori: Up to 32 users 3 levels: administrator, operator, and user

Software: iVMS-4200, Hik-Connect

Compatibilitate browser: Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+

WDR: 120dB

SNR: ≥ 52 dB

Comutare zi/noapte: Day, Night, Auto, Schedule

Îmbunătățirea imaginii: BLC, HLC, 3D DNR

Setări imagine: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Mască de confidențialitate: 4 programmable polygon privacy masks

Port retea: 1 RJ45 10 M/100 M self-adaptive Ethernet port

Card Memorie: -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB

Microfon: -U: Yes

Resetare: -F: Yes

Evenimente: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception

Actiuni declansate: Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture

Alimentare: 12VDC ± 25%, PoE: IEEE 802.3af

Material: Metal & Plastic

Dimensiuni: 170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7")

Dimensiunea pachetului: 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")

Greutate: 270 g

Greutate cu ambalaj: 481 g (1.1 lb.)

Temperatura de stocare: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Temperatura de functionare: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Limba: English, Ukrainian

Functii standard: Heartbeat, anti-banding, mirror, password protection, password reset via email

Emc: FCC: 47 CFR Part 15, Subpart B CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7 KC: KN32: 2015, KN35: 2015

Siguranţă: UL: UL 62368-1 CB: IEC 62368-1: 2014+A11 CE-LVD: EN 62368-1: 2014/A11: 2017 BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

Certificate mediu: CE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006

Protectie: IP67: IEC 60529-2013

DORI: DORI → 2.8 mm, D: 59 m, O: 23 m, R: 11 m, I: 5 m 4 mm, D: 79 m, O: 31 m, R: 15 m, I: 7 m

Consum: 0.4 A
