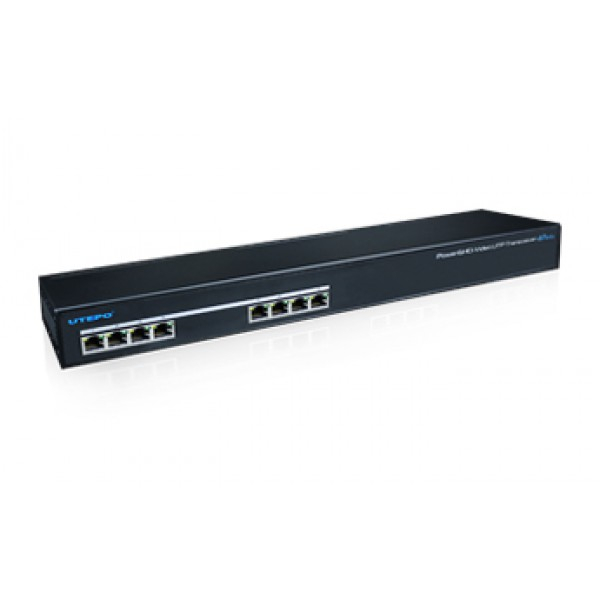

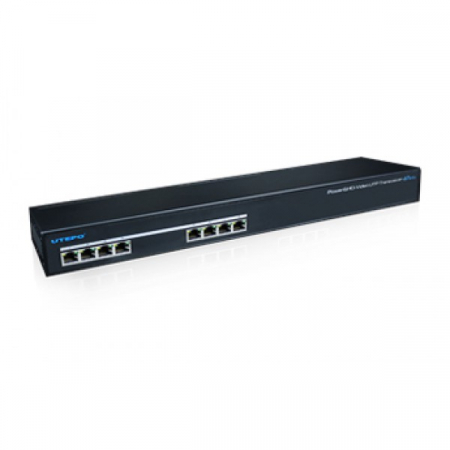

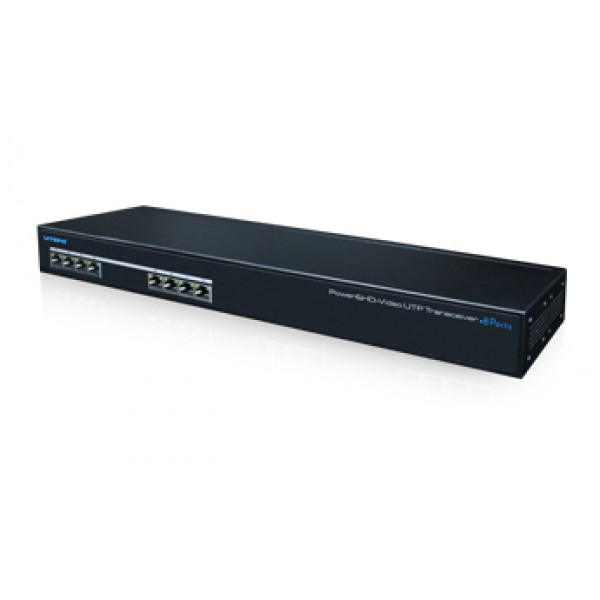

UTP108PV-HD2 * Transceiver video HD cu 8 canale
![UTP108PV-HD2 * Transceiver video HD cu 8 canale [1]](https://gomagcdn.ro/domains2/asfy.ro/files/product/original/utp108pv-hd2-transceiver-video-hd-cu-8-canale-646796.jpg "UTP108PV-HD2 * Transceiver video HD cu 8 canale [1]")
![UTP108PV-HD2 * Transceiver video HD cu 8 canale [2]](https://gomagcdn.ro/domains2/asfy.ro/files/product/original/utp108pv-hd2-transceiver-video-hd-cu-8-canale-974059.jpg "UTP108PV-HD2 * Transceiver video HD cu 8 canale [2]")
![UTP108PV-HD2 * Transceiver video HD cu 8 canale [3]](https://gomagcdn.ro/domains2/asfy.ro/files/product/original/utp108pv-hd2-transceiver-video-hd-cu-8-canale-830318.jpg "UTP108PV-HD2 * Transceiver video HD cu 8 canale [3]")
![UTP108PV-HD2 * Transceiver video HD cu 8 canale [4]](https://gomagcdn.ro/domains2/asfy.ro/files/product/original/utp108pv-hd2-transceiver-video-hd-cu-8-canale-852664.jpg "UTP108PV-HD2 * Transceiver video HD cu 8 canale [4]")
![UTP108PV-HD2 * Transceiver video HD cu 8 canale [0]](https://gomagcdn.ro/domains2/asfy.ro/files/product/medium/utp108pv-hd2-transceiver-video-hd-cu-8-canale-646796.jpg "UTP108PV-HD2 * Transceiver video HD cu 8 canale [0]")
![UTP108PV-HD2 * Transceiver video HD cu 8 canale [1]](https://gomagcdn.ro/domains2/asfy.ro/files/product/medium/utp108pv-hd2-transceiver-video-hd-cu-8-canale-974059.jpg "UTP108PV-HD2 * Transceiver video HD cu 8 canale [1]")
![UTP108PV-HD2 * Transceiver video HD cu 8 canale [2]](https://gomagcdn.ro/domains2/asfy.ro/files/product/medium/utp108pv-hd2-transceiver-video-hd-cu-8-canale-830318.jpg "UTP108PV-HD2 * Transceiver video HD cu 8 canale [2]")
![UTP108PV-HD2 * Transceiver video HD cu 8 canale [3]](https://gomagcdn.ro/domains2/asfy.ro/files/product/medium/utp108pv-hd2-transceiver-video-hd-cu-8-canale-852664.jpg "UTP108PV-HD2 * Transceiver video HD cu 8 canale [3]")
Durata de livrare: 1
- Descriere
- Caracteristici
- Review-uri (0)
Compatibil cu formatele CVBS, HDCVI, HDTVI si AHD.

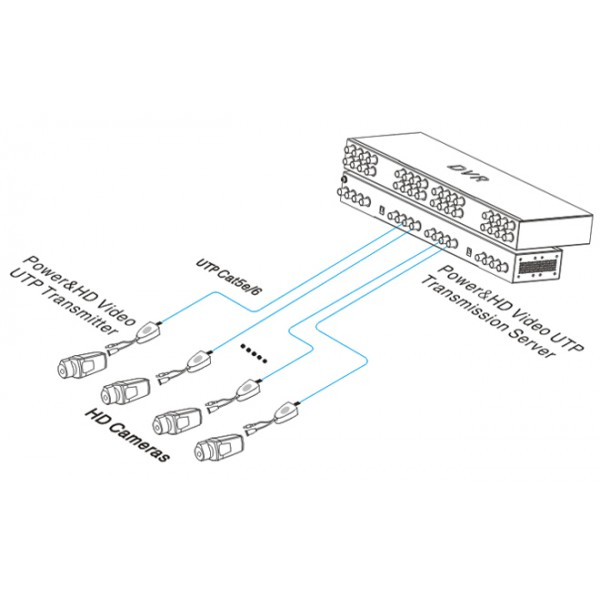

Setul este compus dintr-o unitate de receptie (transceiver) cu 8 canale, care se conecteaza la intrarile DVR-ului si 8 unitati de transmisie cu cate 1 canal, care se conecteaza la camerele de supraveghere.
Dispune de protectie la scurtcircuit, supratensiune.
Poate fi instalat cu usurinta pe perete, birou sau in rack.
Tip produs: Transceiver 8 canale
Alimentare: 24Vcc
Consum: <192W (<12W pe port)
Canale: 8 canale video + alimentare

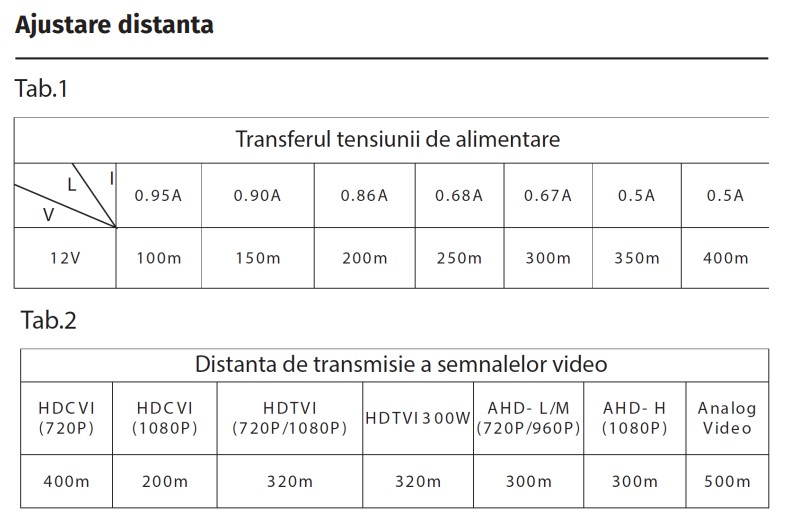

Distanta transmisie/receptie: max. 500m (vezi detalii in imagine)
Port cablu: 8 x RJ45
Port video: 8 x BNC
Formate compatibile: HDCVI, HDTVI, AHD, PAL, NTSC, SECAM
Latime banda: 0-75 MHz
Protectie Interferente: >60dB
LED stare: Led-ul galben lumineaza: scurt-circuit, supratensiune Led-ul verde lumineaza: mod normal de lucru
Protectie ESD: 1a Descarcare prin contact 6kV 1b Descarcare prin aer 8kV Per: IEC61000-4-2
Protectie: 2kV (diferential) 4kV (comun) Per: IEC61000-4-5
Temperatura de functionare: -10°C ~ 45°C
Umiditate: 0%~95% (fara condensare)
Dimensiuni: 430 (L) x 83 (l) x 44.5 (H) mm
Material: Otel galvanizat
Culoare echipament: Negru
Greutate: 6 Kg
Tensiune iesire: 12V - 1A
